Surface-mounted radiation temperature sensor with passive output
Application
Resistance sensor especially for temperature measurement in larger rooms. The measurement method with the dark radiation sensor achieves a very good measurement result that is representative of the measurement room.
Technical Data
| Measuring range: | -30...+75°C |
|---|---|
| Sensors: | see table below |
| Circuit type: | 2- wire connection (3-/4- wire connection optional) |
| Measuring current: | ca. 1mA |
| Insulation resistance: | >/= 100MOhm, at 20°C (500VDC) |

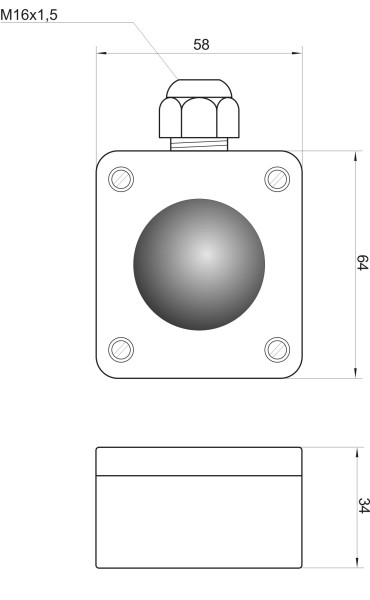

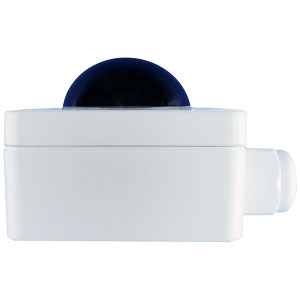

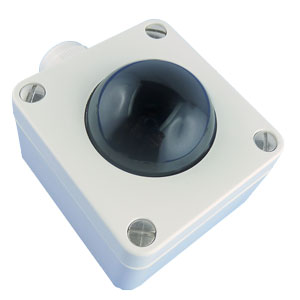

| Housing: | Plastic, white (RAL 9010), black globe |
| Protection type: | IP65 (EN 60529) |
| Protection class: | III (EN 60730) |
