Room radiation temperature sensor RSTF

Room radiation temperature sensor with passive output

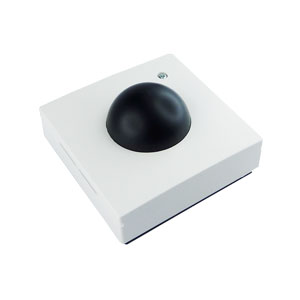

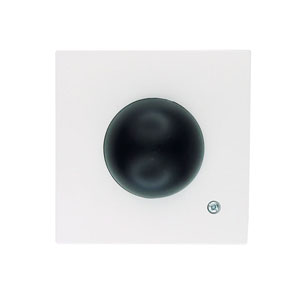

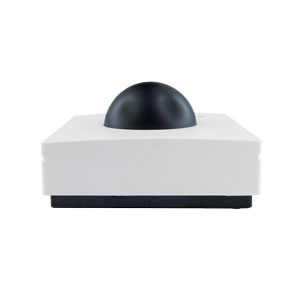

Product Image

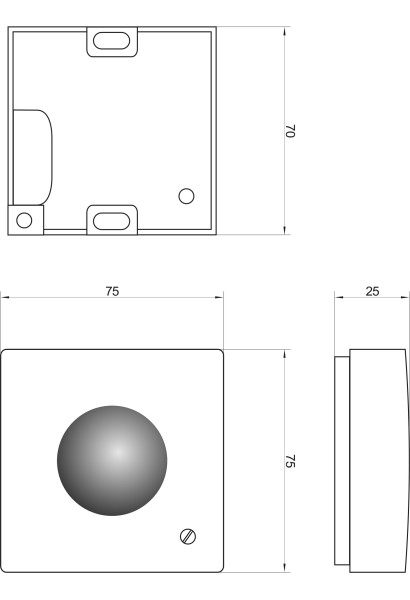

Dimensional drawing
Anschluss Schaltbild

Application

Resistance sensors especially for temperature detection in larger rooms. The measurement method with the dark radiation sensor achieves a very good measurement result that is representative of the room.

Technical Data

Measuring range:	-30...+75°C
Sensors:	see table below
Circuit type:	2- wire connection (3-/4- wire connection optional)
Measuring current:	ca. 1mA
Insulation resistance:	>/= 100MOhm, at 20°C (500VDC)
Housing:	Plastic, white (RAL 9010), black globe
Protection type:	IP30 (EN 60529)
Protection class:	III (EN 60730)

Sensors
RSTF Pt100 (Class B, DIN EN 60751)
RSTF Pt1000 (Class B, DIN EN 60751)
RSTF Ni1000
RSTF Ni1000TK5000
RSTF NTC 1,8kOhm
RSTF KTY2k, NTC2k, 10k, 20k, 30k 37,50k 10k Precon
RSTF LM235Z
