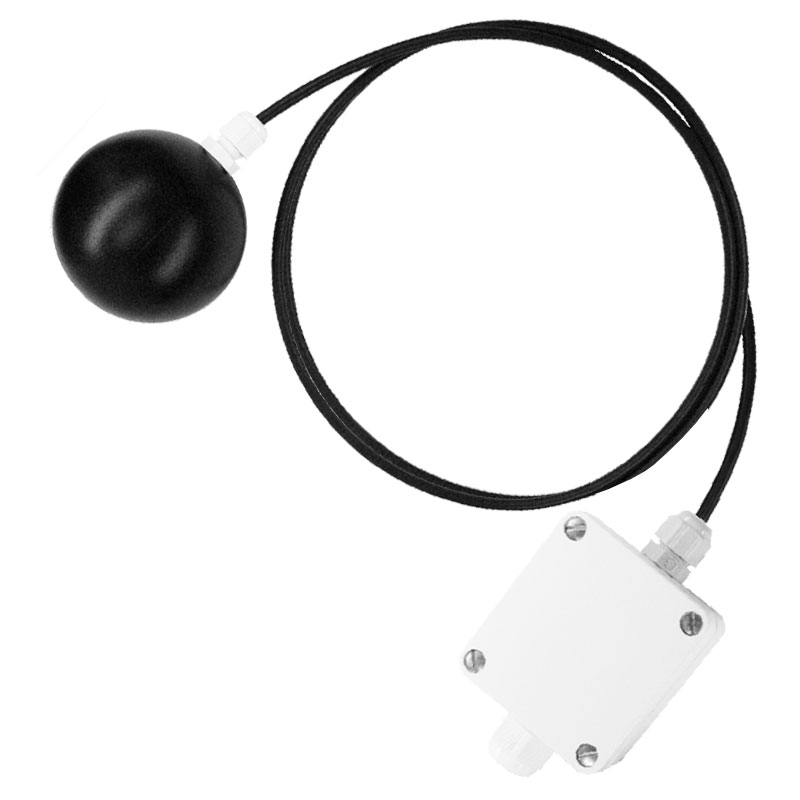

Room pendulum temperature transmitter RPTM2

Pendulum temperature transmitter with active output and switchable measuring ranges

Application

Switchable room pendulum temperature transmitter especially for temperature detection in larger rooms, halls or warehouses. The measurement method and the corresponding positioning of the sensor in the room guarantee a very good measurement result. The dark radiation sensor version is used to determine the proportion of radiation or the radiant heat.


































Technical Data
Measuring range:
-50...+50°C, -20...+80°C, 0...+50°C, 0...+100°C, 0...+160°C, -50...+160°C selectable with dip switch (other measuring ranges optional)


Voltage supply:
24 VAC ± 10% (for voltage output)

16-32 VDC (for voltage and current output)

Current consumption: <4mA by 32 VDC



Ambient temperature:
-30...+70°C


Sensor:
Pt100


Accuracy class:
Class B, DIN EN 60751


Measuring current:
ca. 1mA

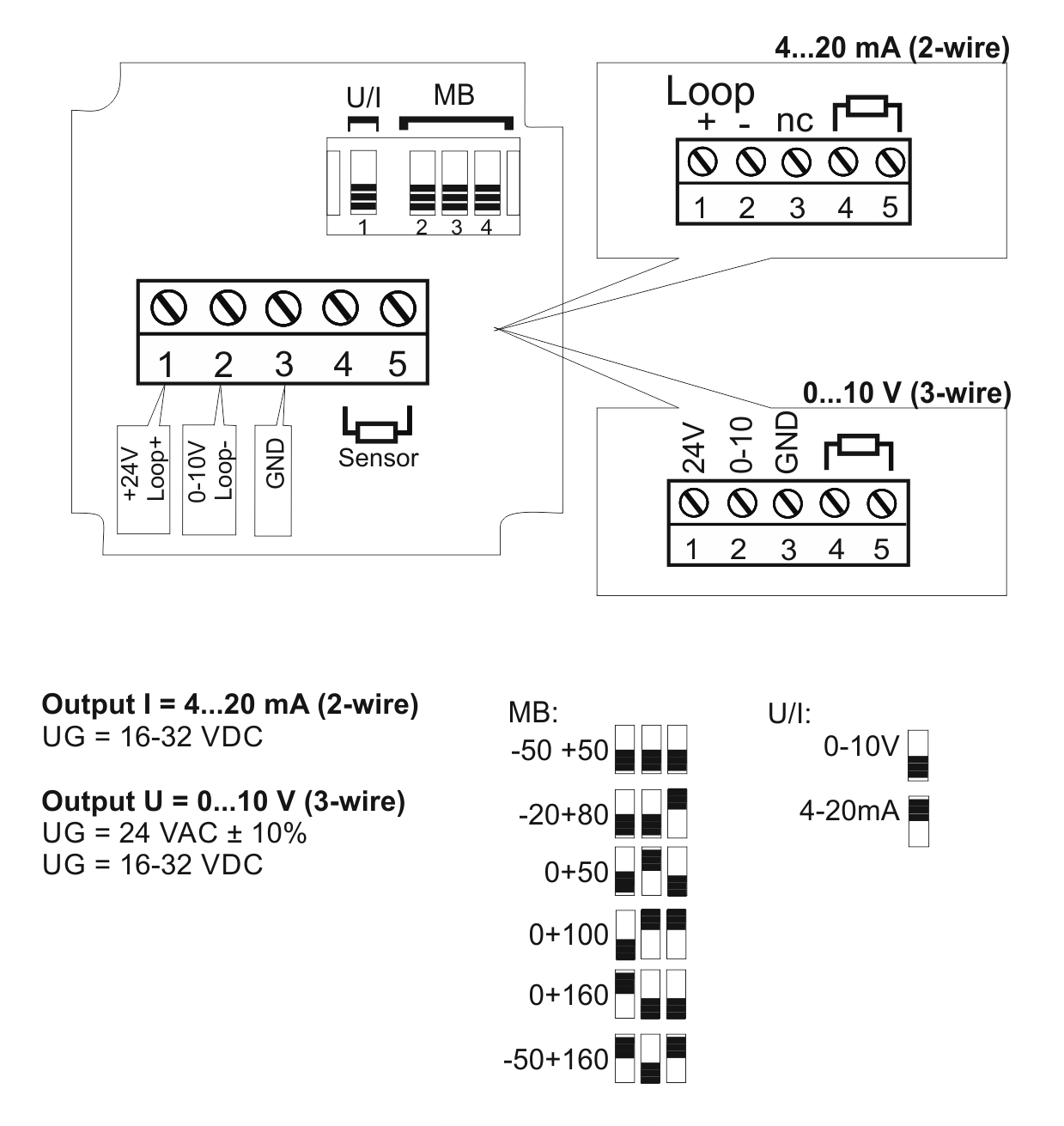

Circuit type:
2-/ 3-wire connection


Sensor cable:
PVC 1.5m (standard)

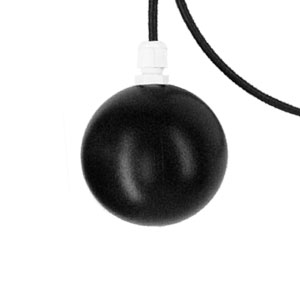

Globe:
Ø = 60mm, black color


Material:
Aluminum


Protection type:
IP65 (EN 60529)


Protection class:
III (EN 60730)


  • Sensors
    RPTM2 -I      Output: 4…20 mA


    RPTM2 -U    Output: 0 - 10 V


  • Length
    other lengths of connecting cable (PVC / silicone) on request
