Room pendulum temperature sensor RPTF1

Download
PDF

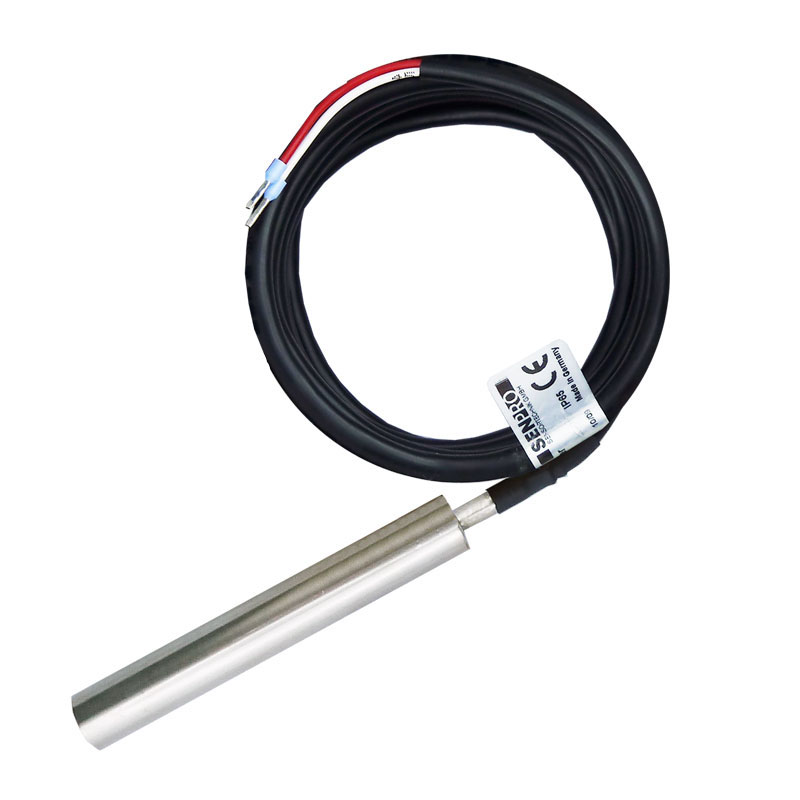

Pendulum temperature sensor with passive output

Application

Room pendulum temperature sensor especially for temperature detection in larger rooms, halls or warehouses. The measurement method and the corresponding positioning of the sensor in the room guarantee a very good measurement result.


































Technical Data
Measuring range:
-30...+150°C


Sensors:
see table below


Circuit type:
2- wire connection (3-/4- wire connection optional)


Measuring current:
ca. 1mA


Sensor cable:
 PVC 1.5m (standard)


Material:
Stainless steel 1.4571

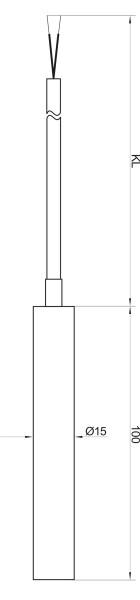

Protection tube:
Nominal length 100mm, Ø = 15mm


Insulation resistance:
>/= 100MOhm, at 20°C (500VDC)


Protection type:
IP65 (EN 60529)


Protection class:
III (EN 60730)


  • Sensors
    RPTF1 Pt100   (Class B, DIN EN 60751)

RPTF1 Pt1000 (Class B, DIN EN 60751)

RPTF1 Ni1000

RPTF1 Ni1000TK5000

RPTF1 NTC 1,8kOhm

RPTF1 KTY2k, NTC2k, 10k, 20k, 30k, 50k, 10k Precon

RPTF1 LM235Z


  • Length
    other lengths of connecting cable (PVC / silicone) on request
