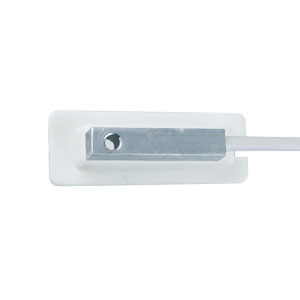

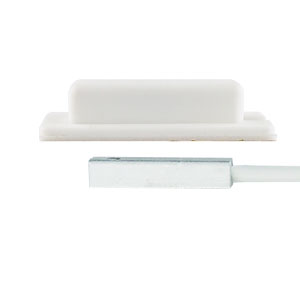

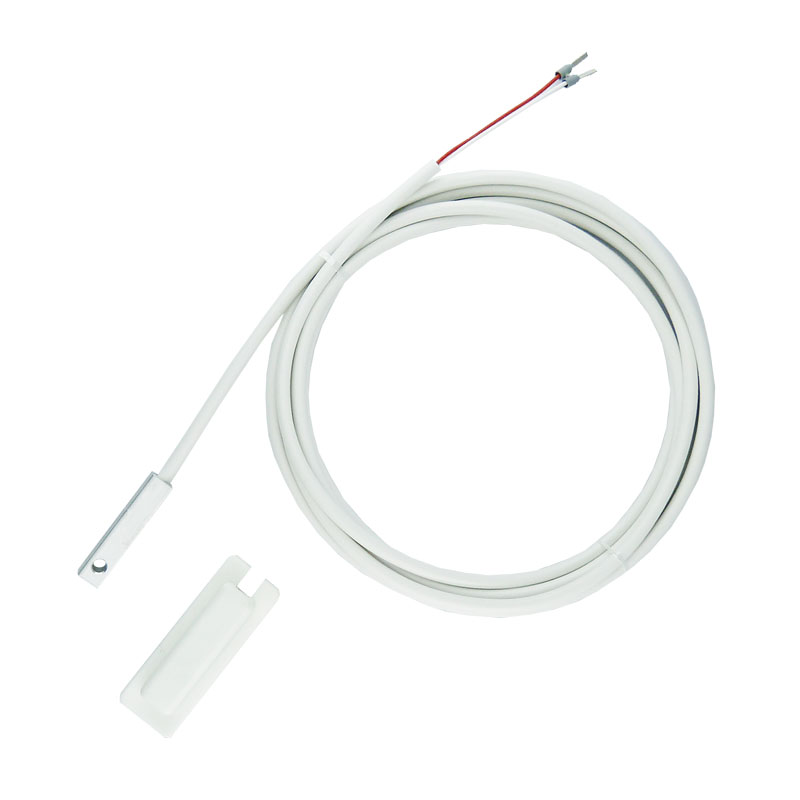

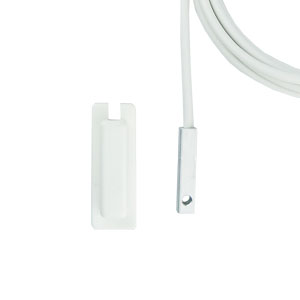

Surface temperature sensor with passive output.
Application:
Temperature detection on straight and curved surfaces, e.g. for surface temperature measurement on windows, as a heating surface sensor and for monitoring the formation of condensate.
Technical Data
| Measuring range: | -20...+105°C |
|---|---|
| Sensor: | see table |
| Circuit type: | 2- wire connection |
| Measuring current: | ca. 1mA |
| Process connection: | is attached to the surface with the appropriate adhesive |
| Connection cable: | PVC, 1m |
| Insulation resistance: | >/= 100MOhm, at 20°C (500 VDC) |
| Protection type: | IP65 (EN 60529) |
| Protection class: | III (EN 60730) |
