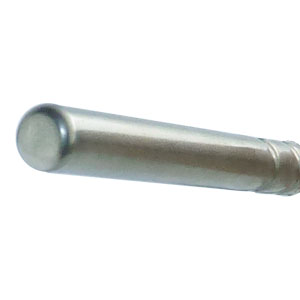

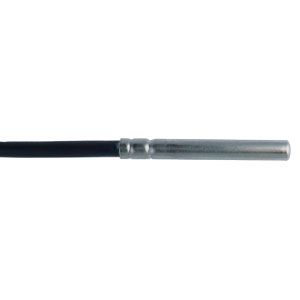

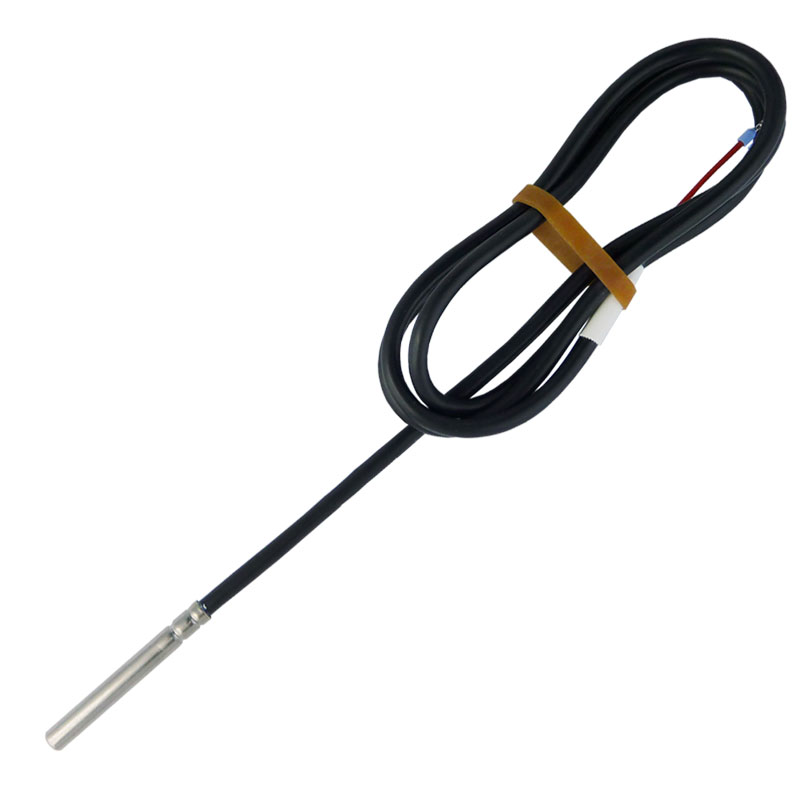

Sleeve temperature sensor with passive output
Application:
Sleeve temperature sensors for recording temperatures in liquid and gaseous media by installing in an immersion sleeve, available in different cable and sleeve lengths or diameters.
Technical Data
| Measuring range: | -35...+105°C PVC |
|---|---|
| Sensors: | see table below |
| Circuit type: | 2-wire connection (optional 3- or 4-wire connection) |
| Measuring current: | ca. 1mA |
| Sensor sleeve material: | Stainless steel 1.4571 |

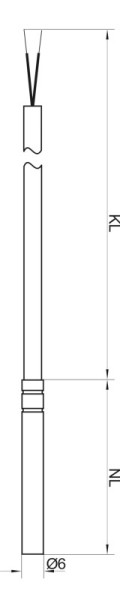

| Sleeve dimensions: | Ø = 6mm, nominal length = 50mm (optional other lengths) |
| Sensor cable: | 2m (optional other lengths) |
| Insulation resistance: | >/= 100MOhm, at 20°C (500VDC) |
| Protection type: | IP65 (EN 60529) |
| Protection class: | III (EN 60730) |
