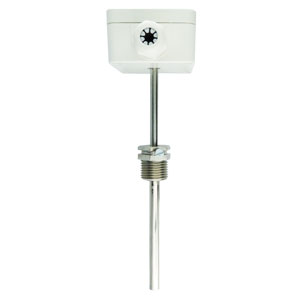

Screw-in temperature transmitter with neck tube ETM3

Screw-in temperature transmitter with active output, 6 switchable measuring ranges and neck tube

Application

Switchable screw-in temperature transmitter with neck tube for recording temperatures in liquid or gaseous media for use in pipelines, storage and district heating compact stations, in heating technology, in hot / cold water systems, in machine, apparatus and plant construction – preferably with insulation.



Technical Data

Measuring range:

-50...+50°C, -20...+80°C, 0...+50°C, 0...+100°C, 0...+160°C, -50...+160°C selectable with dip switch (other measuring ranges optional)

Voltage supply:

24 VAC ± 10% (for voltage output)
16-32 VDC (for voltage and current output)
Current consumption: <4mA by 32 VDC

Ambient temperature:

-30...+70°C

Sensor:

Pt1000

Accuracy class:

Class B

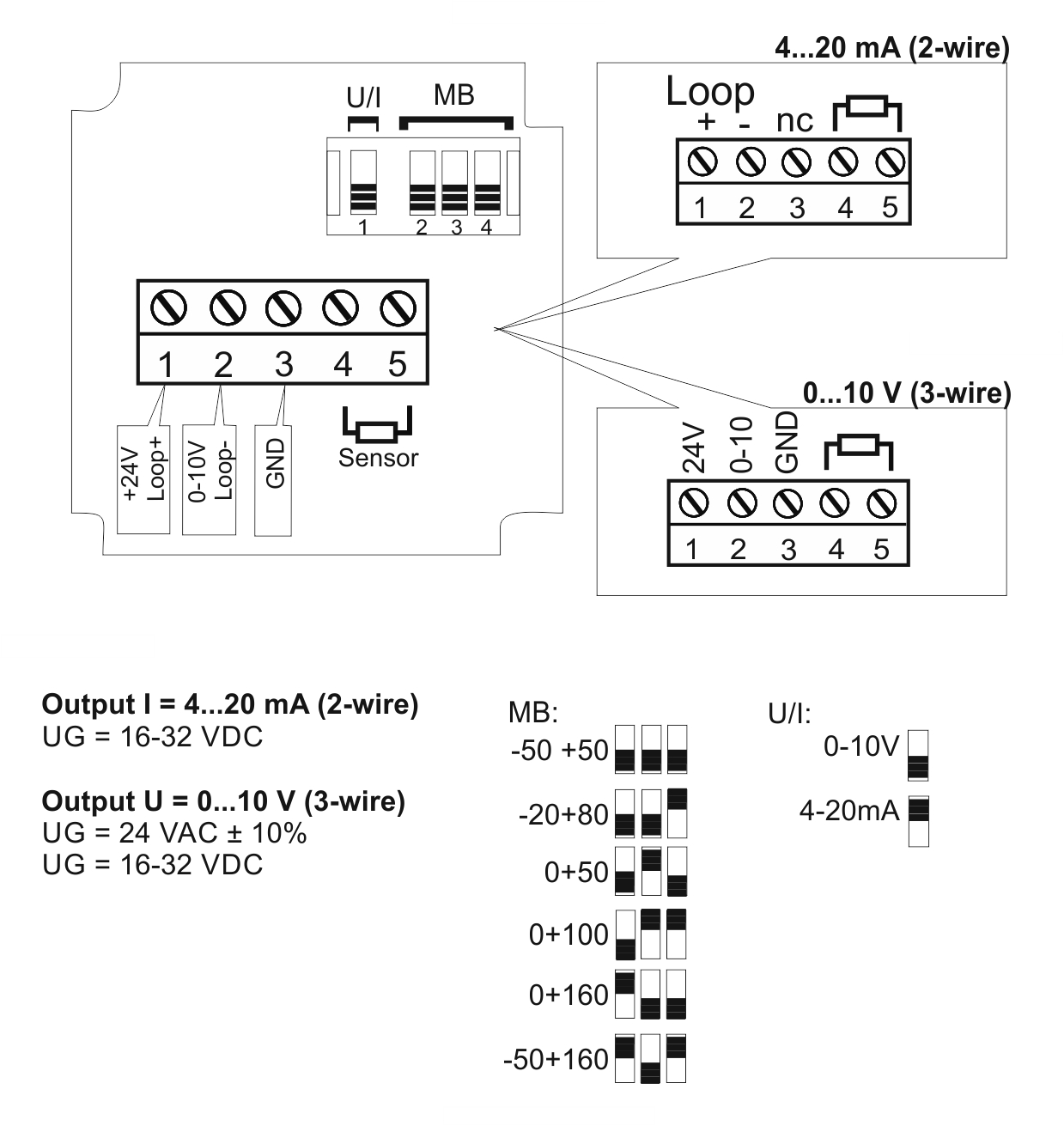

Circuit type:

2-/3- wire connection

Measuring current:

ca. 1mA

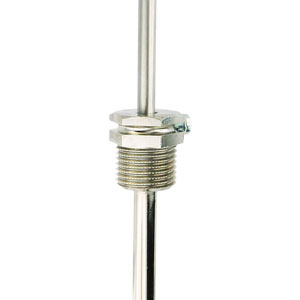

Process connection:

Screw-in thread G1/2

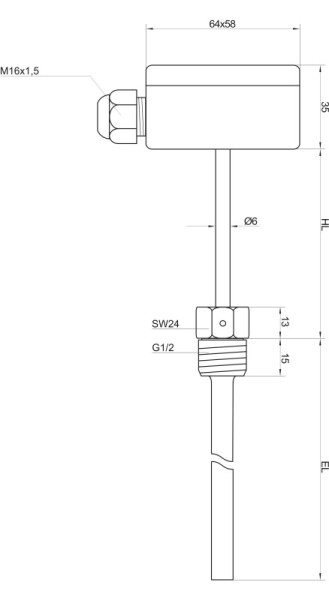

Neck tube length:

80mm (optional other lengths)

Protection tube:

Protection tube Ø = 6 mm, immersion sleeve stainless steel (standard) Ø = 9mm

Housing:

Plastic, white (RAL 9010)

Screw connection:

M16x1,5

Protection type:

IP65 (EN 60529)

Protection class:

III (EN 60730)

  • Sensors

    ETM3 -I      Output: 4…20mA
    ETM3 -U    Output: 0 - 10V

  • Length

    Standard lengths: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm

    other lengths on request
