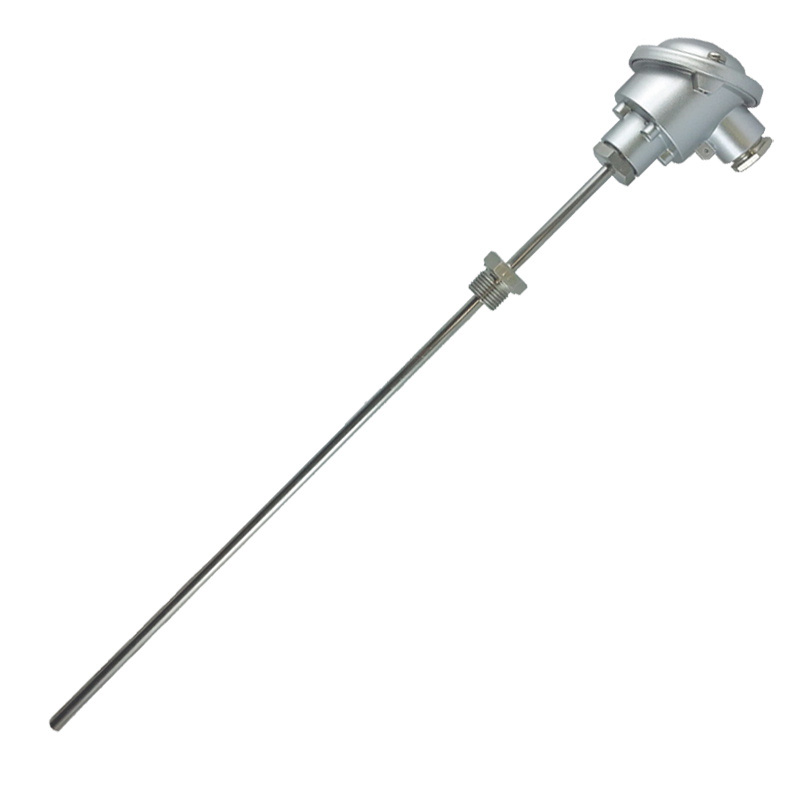

Screw-in temperature sensor with passive output and neck tube
Application
Screw-in temperature sensor for recording temperatures in liquid or gaseous media for robust applications with connection head made of aluminum and neck tube.
Technical Data
| Measuring range: | -35°C...+180°C |
|---|---|
| Sensors: | see table below |
| Process connection: | Screw-in thread G1/2 |
| Neck tube length: | 80mm (optional other lengths) |
| Protection tube material: | Stainless steel 1.4571 |

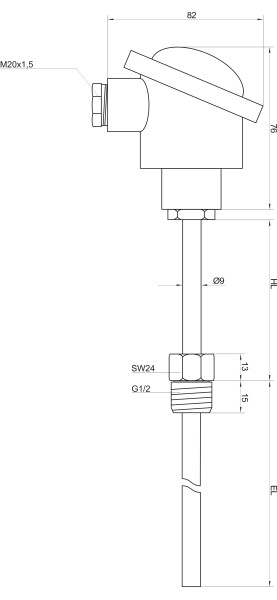

| Protection tube dimensions: | ø = 9mm, see dimensional drawing |

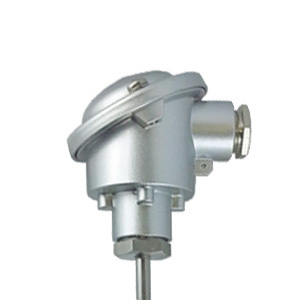

| Connection head: | Form B, aluminum, gray color |
| Insulation resistance: | >/= 100MOhm, at 20°C (500 VDC) |
| Protection type: | IP54 (EN 60529), optional IP65 |
| Protection class: | III (EN 60730) |
