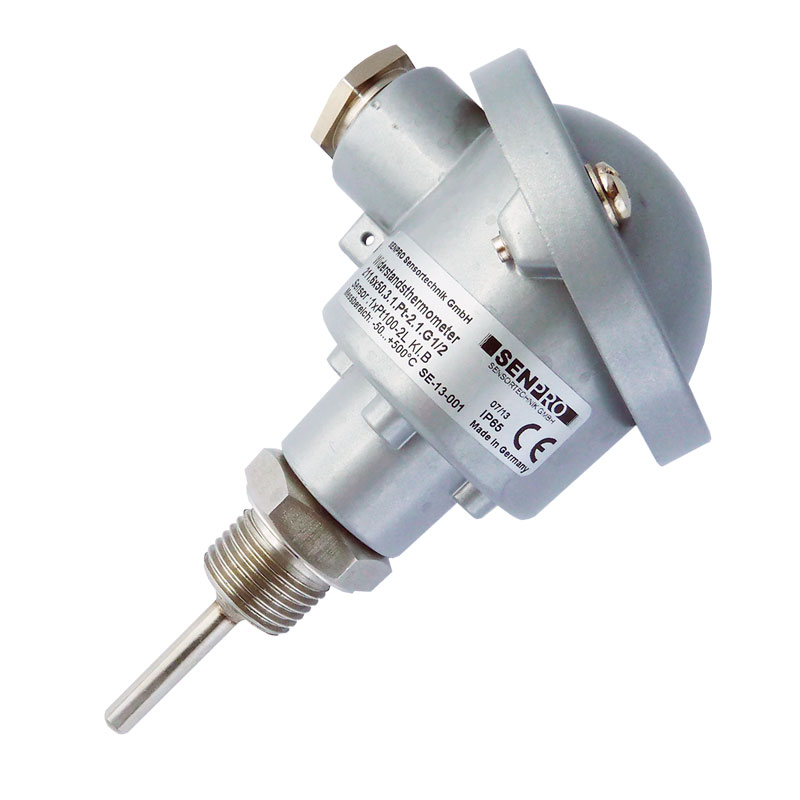

Screw-in resistance thermometer with passive output and aluminum head
Application
Screw-in temperature sensor for recording temperatures in liquid or gaseous media for robust applications. They have a straight protective tube, an aluminum connection head and a separate immersion sleeve.
Technical Data
| Measuring range: | -35...+180°C (Tmax NTC=150°C, Tmax LM235Z=125°C) |
|---|---|
| Sensors: | see table below |
| Circuit type: | 2- wire connection (3-/4- wire connection optional) |
| Measuring current: | ca. 1mA |
| Protection tube material: | Stainless steel 1.4571 |

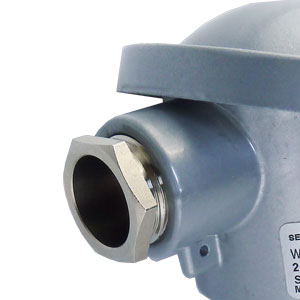

| Connection head: | Form B, aluminum, gray color |
| Max. Pressure: | Stainless steel immersion sleeves 40bar |
| Insulation resistance: | >/= 100MOhm, at 20°C (500VDC) |

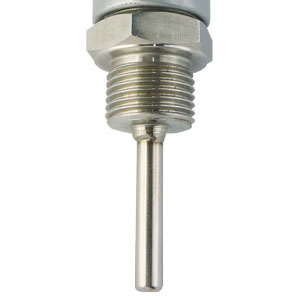

| Process connection: | Screw-in thread G1/2 |
| Protection type: | IP54 (EN 60529) |
| Protection class: | III (EN 60730) |
