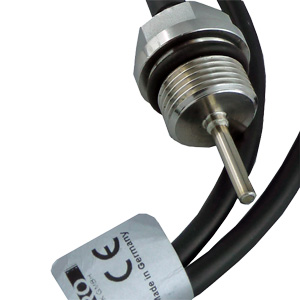

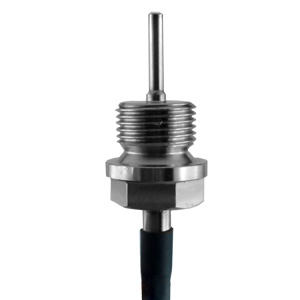

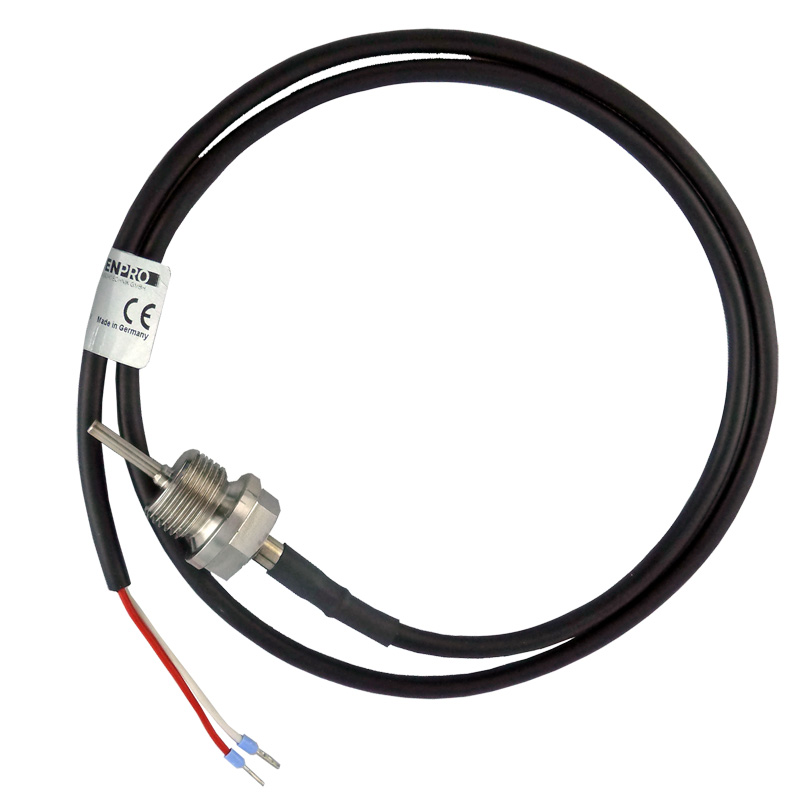

Screw-in sensor with passive output
Application:
Screw-in temperature sensor with integrated measuring point for installation in pipes or boilers. The sensor can be removed or replaced during welding or repair work.
Technical Data
| Measuring range: | -40...+350°C |
|---|---|
| Sensors: | see table below |
| Circuit type: | 2- wire connection (3-/4- wire connection optional) |
| Measuring current: | ca. 2mA |

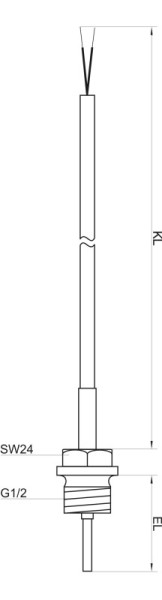

| Installation length: | 100 mm (other lenghts optional) |
| Electrical connection: | Stripped ends with ferrules |
| Process connection: | Screw-in thread G1/8, G1/4, G1/2, G3/4, M6, M8, M10 |
| Protection tube material: | Stainless steel 1.4571 |
| Connection cable: | PVC (up to + 105 ° C), silicone (up to + 180 ° C) |
| Cable lenght: | Standard: 1m / 2m |
| Protection type: | IP54 (EN 60529) |
| Protection class: | III (EN 60730) |
| Optional: | Anti-kink spring (stainless steel, 50mm) |
